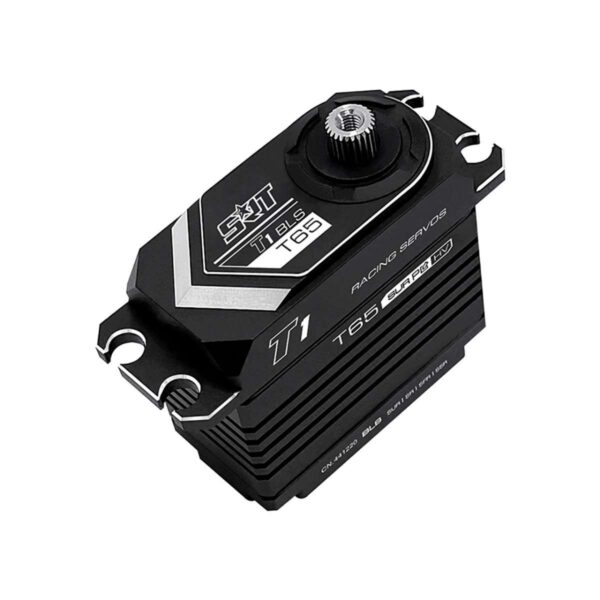

SERVO SRT T65 45Kg/0,074Seg (7,4v)

Descrição

KEY FEATURES

& Ideal for 1/8 on road and 1/5 off road scale applications

& Superior Holding Torque

& Incredible efficiency and low power consumption

& Standard dimension make it perfect for vehicles that can benefit from a high quality servo

& CNC Machined aluminum case for exceptional cooling

& Programmable High torque Brushless servo

& SSR mode compatible

& 25T output shaft

& 2 μsec Dead Band

& 1-Year Limited Warranty

Application :
1/8 Electric/ Car 1/5 Nitro/ Car  Off-road
 On-road

PRODUCT SPECIFICATIONS
Type: Digital
Bearing: Dual
Motor Type: Brushless
Gear Type: Metal
Gear Material: Steel
control system: pulse width control
working frequence: 1520μs / 330hz
operating voltage: dc6.0-8.4v
operating temperature range: -10 to + 60 degree
operating speed (6.0v): 0.092 sec/60 degrees at no load
operating speed (7.4v): 0.074 sec/60 degrees at no load
operating speed (8.4v): 0.065 sec/60 degrees at no load
stall torque (6.0v): 39.0kg.cm (541.6 oz/in)
stall torque (7.4v): 45.0kg.cm (625.0 oz/in)
stall torque (8.4v): 55.0kg.cm (763.8 oz/in)
potentiometer drive: direct drive
dimensions: 40.7×20.5×39.0 mm /1.60×0.81×1.54 in
weight: 83.0g (2.93 oz)
connector wire length: jr 300 mm

SRT SERVO OVERVIEW
The latest generation of SRT  servos provides you with the performance you need for any scale vehicle\ Air Plane\Boat\Robot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
All of SRT servos  are available to be customized for easy installation by OEM order.
